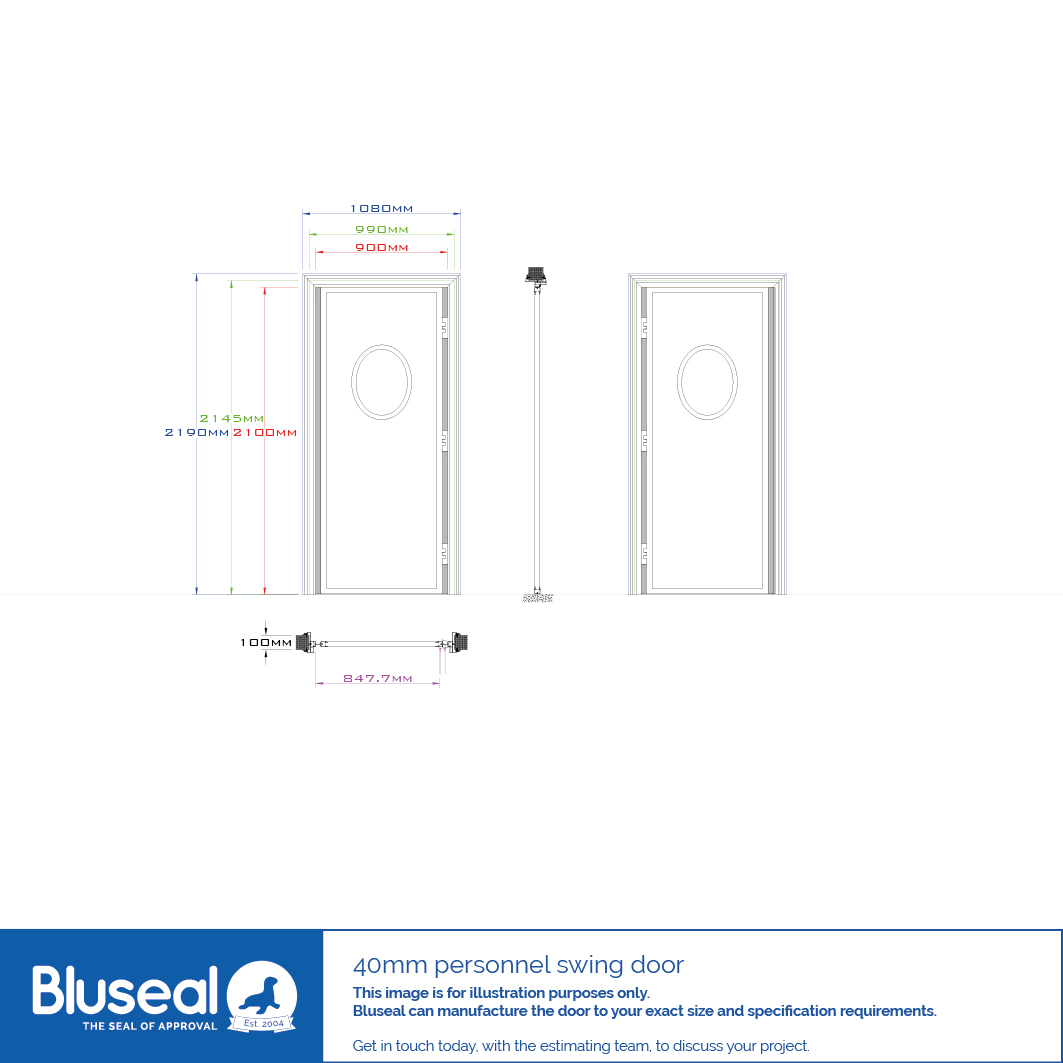

Personnel Swing
-
The swing version of the 40mm personnel door has the same leaf design but with 180° hinges.
- 8mm polyethylene or stainless steel teardrop protection is again an option and the door leaf is available in a range of RAL colours.
- An excellent way of dividing hygienic areas.
-
Flexible gasket is installed to the leading edge and hinge side of the door leaf to minimise air loss.
-
Available in single or double leaf, with a vision panel included as standard to comply with the latest health & safety regulations.
-
This door can be installed onto a clamp frame to suit the insulated panel thickness or onto a plate frame to suit blockwork or steel-framed openings.
What is the ‘clear opening width’?
What is the structural opening width and height?
The structural opening width and height is the size of the gap any persons/ objects can pass through freely when the door is opened fully. However, the effective clear opening width takes into consideration the ironmongery/hardware on your door.
How do I measure the structural opening for a door?
When sizing up your door you should always measure the width and height from at least 3 different points within the aperture. Sometimes you may find your structural opening is not perfectly square. The width at the top and bottom may differ slightly, or the height may vary from one side to another. If this is the case, you should quote the smallest measurements. If there is a significant difference, please inform the sales team when requesting a quote. At Bluseal, we will take your structural opening size and remove the tolerance in house. When requesting a quotation from us, you must always state the structural opening size only and never take the tolerance off yourself.
What do I measure if I’m replacing an existing door?
When replacing an existing door, you must always request a quotation using the structural opening size only. You should never use the measurements of the existing door that is already installed as this is not an accurate and reliable measurement. If the previous door you are replacing is a Bluseal door, you can provide the serial number to our sales team who will be able to advise the previous sizing, you can locate this in the jamb of the door.
